Lithium-Ion Battery Charging Safety Cabinet

Lithium-Ion Battery Charging Cabinet

Introducing Justrite’s lithium-ion battery charging and storage cabinet, fortified with ChargeGuard™ for ultimate protection. This state-of-the-art cabinet features multiple layers of advanced shielding, specifically designed to reduce the risks of battery fires and thermal runaway.

Product Summary

  • Ideal for charging and temporary storage of lithium-ion batteries
  • 2kWh TECR maximum total capacity – includes 8-receptacle power strip
  • Heat-reactive label changes colors when external temperatures reach 120° Fahrenheit
  • Shelf capacity: 65 lbs of evenly distributed weight
  • Cabinet Exterior Dimensions: 24-in H x 43-in W x18-in D

PDF Resources



Lithium-Ion Battery Charging Cabinet

Introducing Justrite's lithium-ion battery charging and storage cabinet, fortified with ChargeGuard™ for ultimate protection. This state-of-the-art cabinet features multiple layers of advanced shielding, specifically designed to reduce the risks of battery fires and thermal runaway.

This patent-pending design for our lithium-ion battery cabinet offers the highest level of protection. With eight receptacles, it allows for simultaneous charging of multiple batteries up to a maximum of 2kWh, providing a reliable and efficient solution. The lightweight, benchtop design allows users to conveniently relocate the cabinet with minimal effort, while lockable doors help control access to lithium-ion batteries while preventing opportunities for theft.

Rest assured that your people, property, and the environment are safeguarded when using Justrite’s family of products. Trust Justrite's lithium-ion cabinet as a secure and comprehensive solution for combatting lithium-ion battery fires.

 Battery Storage Cabinet Construction

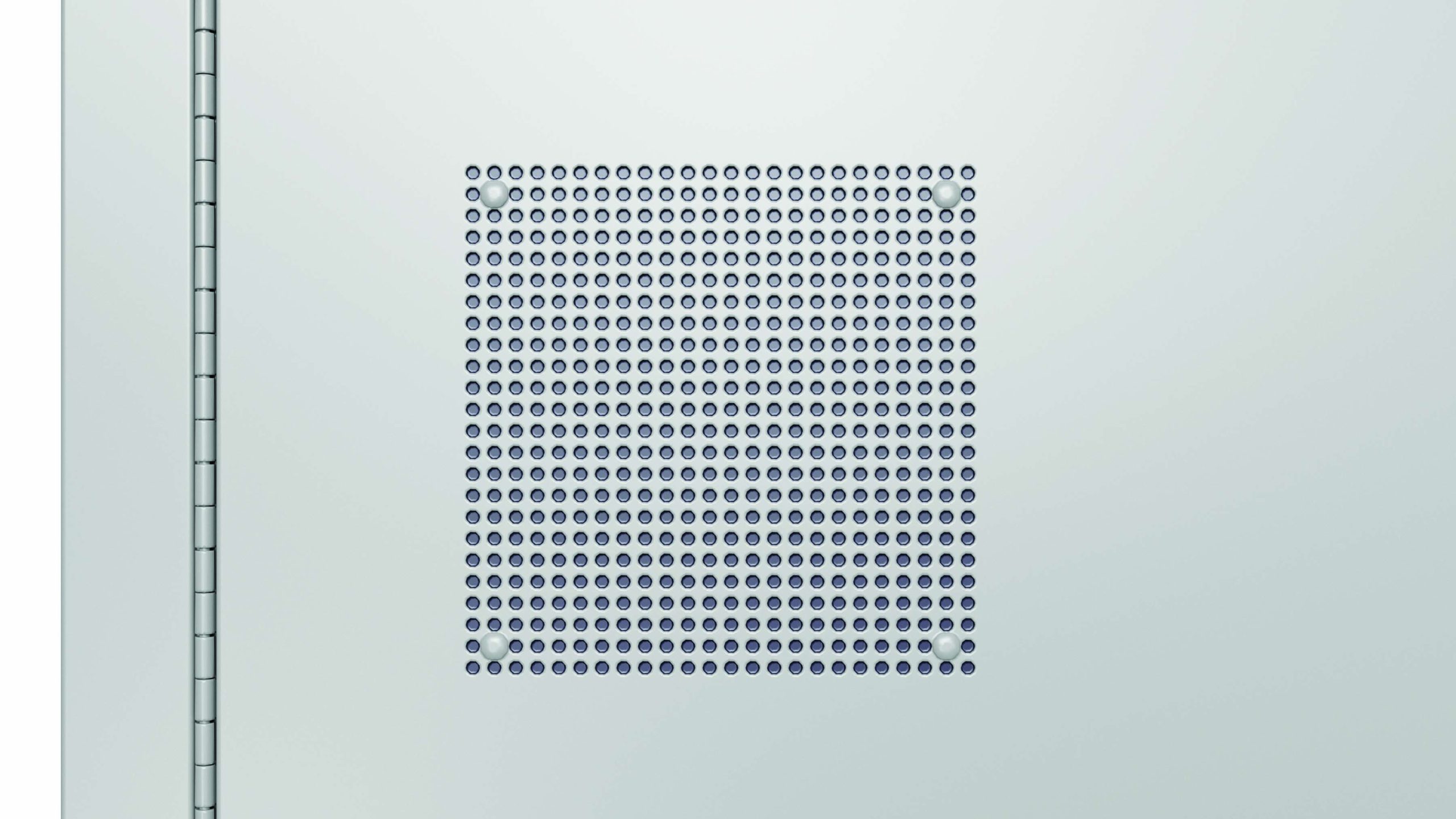

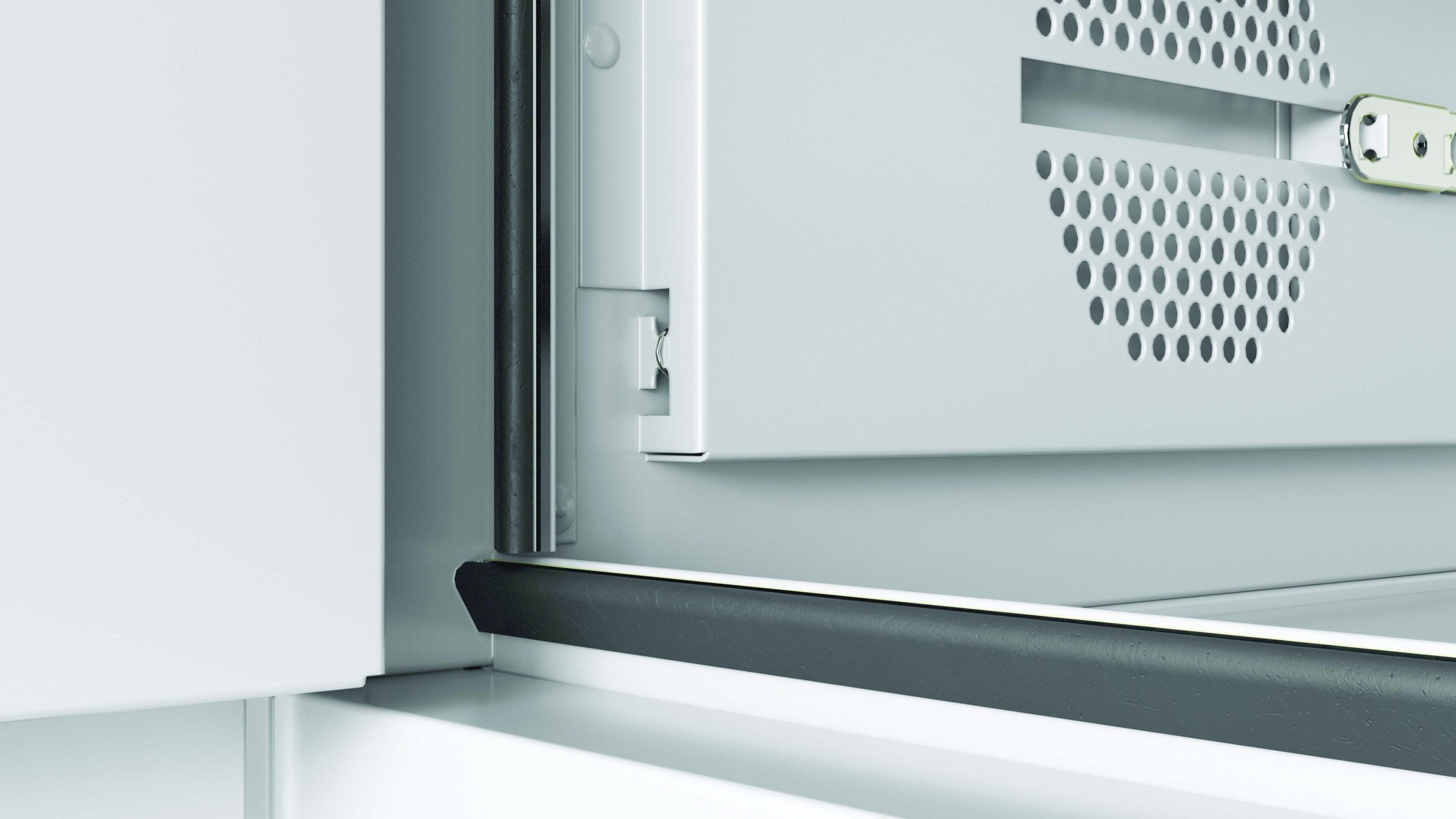

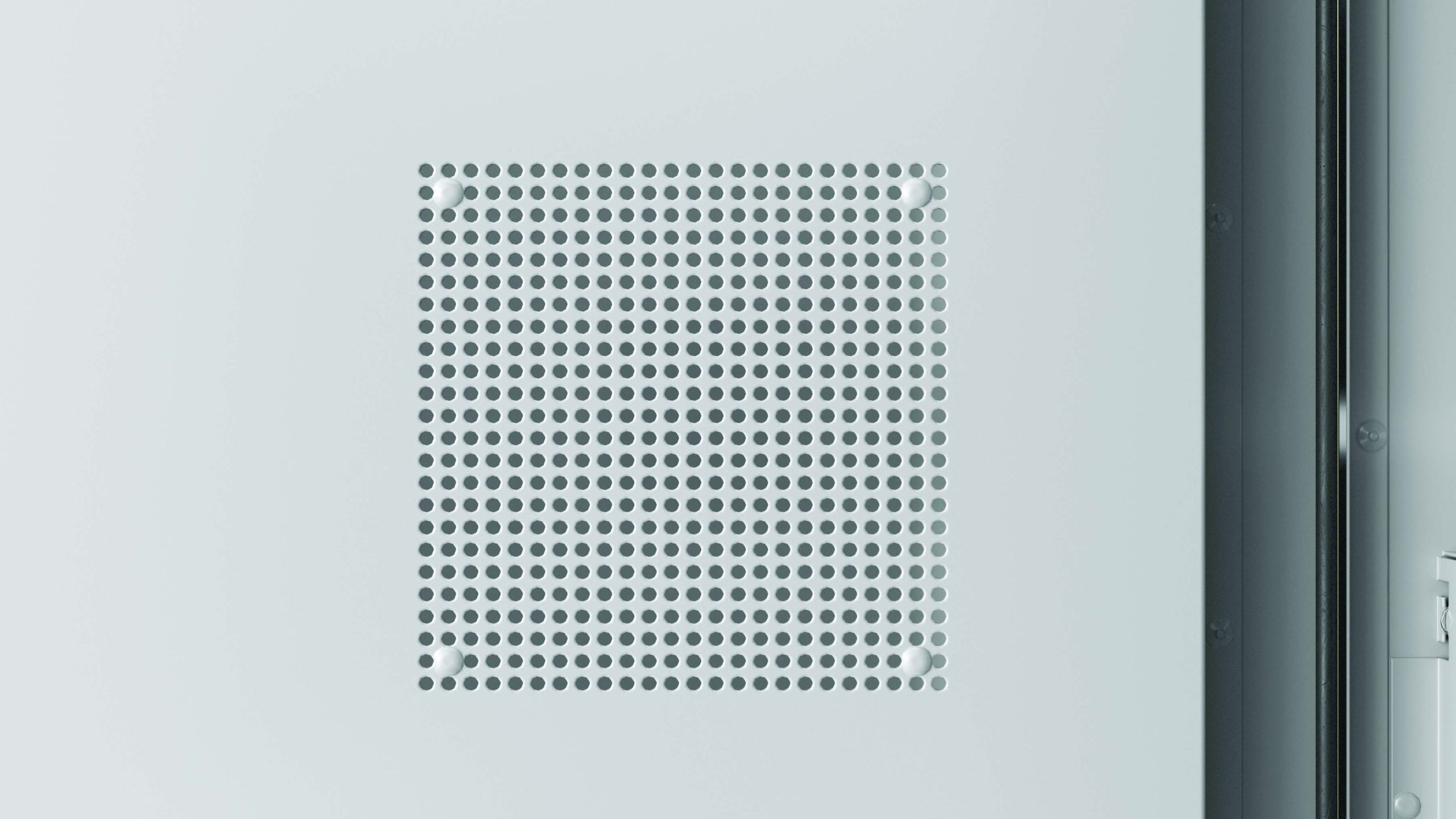

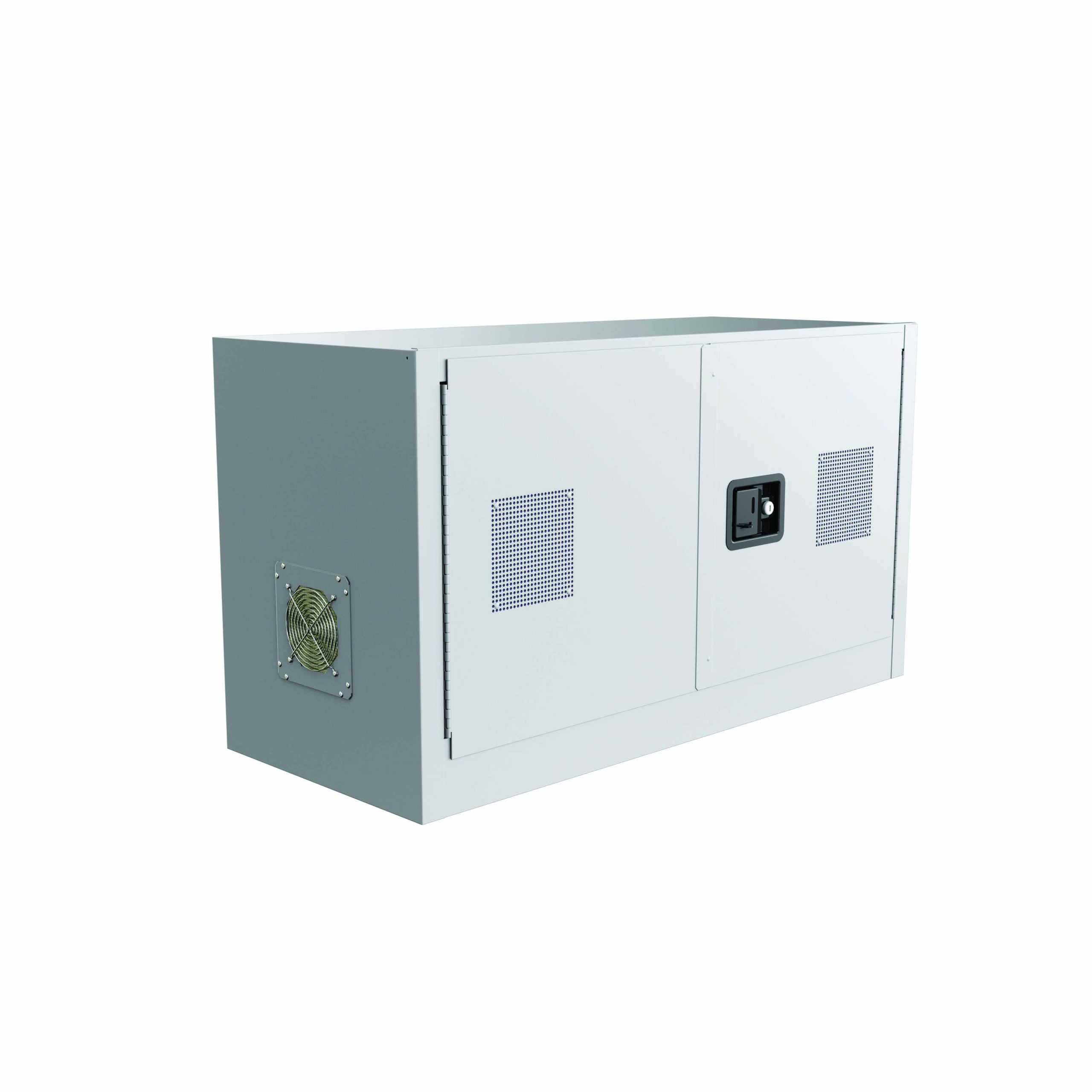

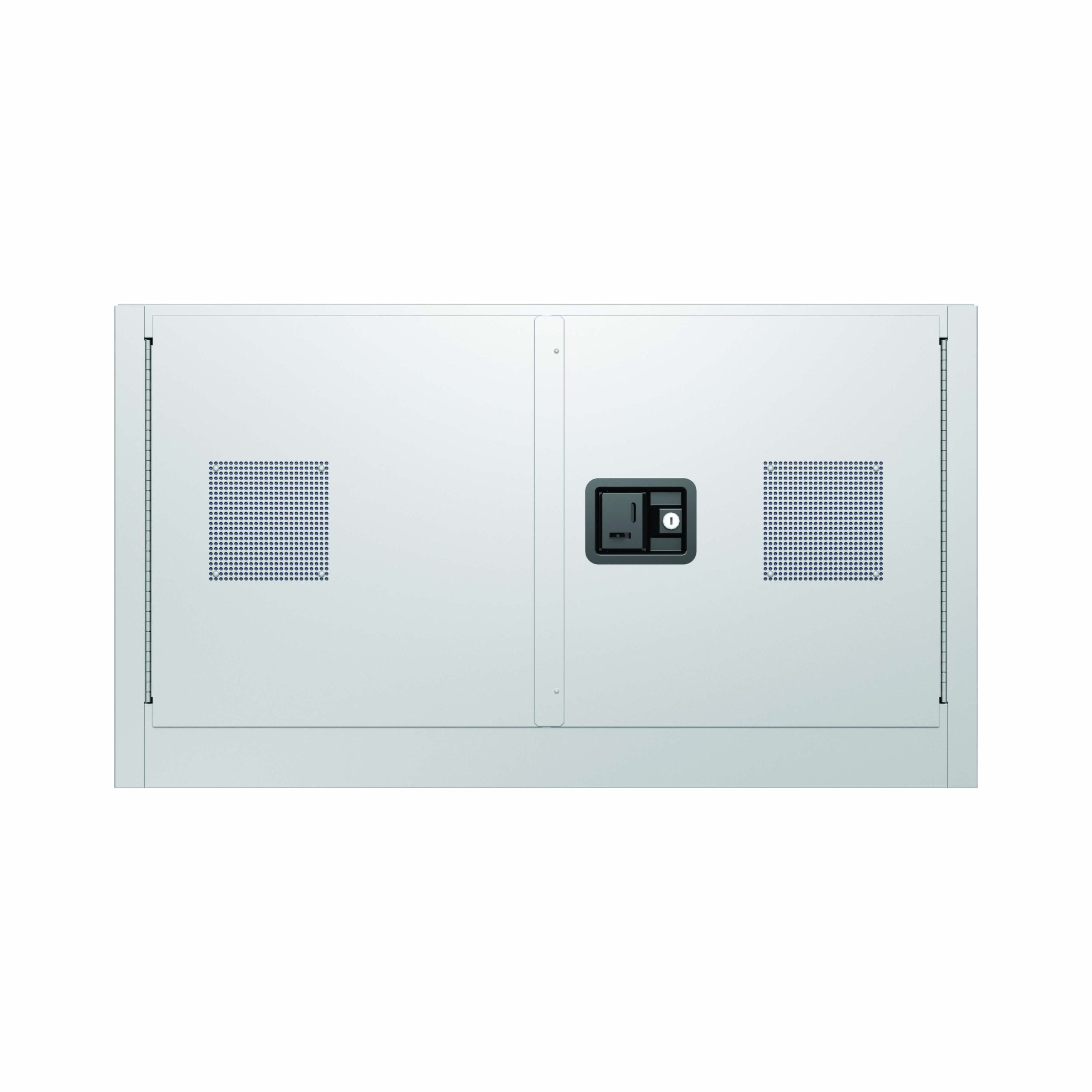

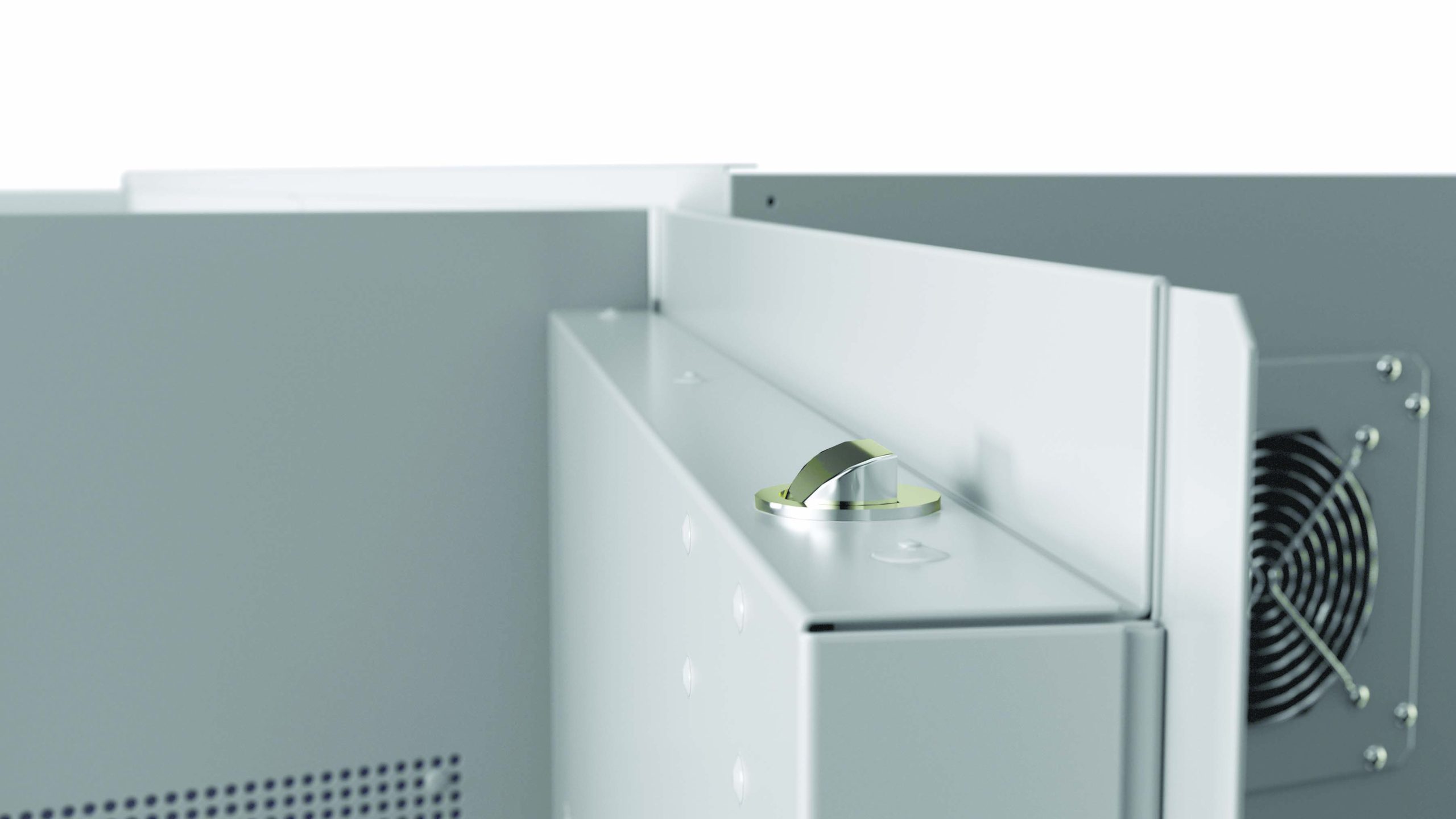

The Justrite battery cabinet is expertly crafted from sturdy 18-gauge (1 mm) steel, ensuring durability and security. Its exterior dimensions measure 24-in H x 43-in W x 18-in D.  The design includes double-walled sides, top, and bottom, with a 1-1/2-inch (3.8 cm) air gap between the walls. The manual-close doors feature baffled vents with a unique flame arrester pattern, supported by continuous piano hinges. The cabinet also includes a grounding attachment, leveling feet, and a three-point stainless steel bullet latching system, ensuring a secure and reliable door closure while enhancing resistance to heat and corrosion. The flush-mounted door handle comes with a key lock for added security.

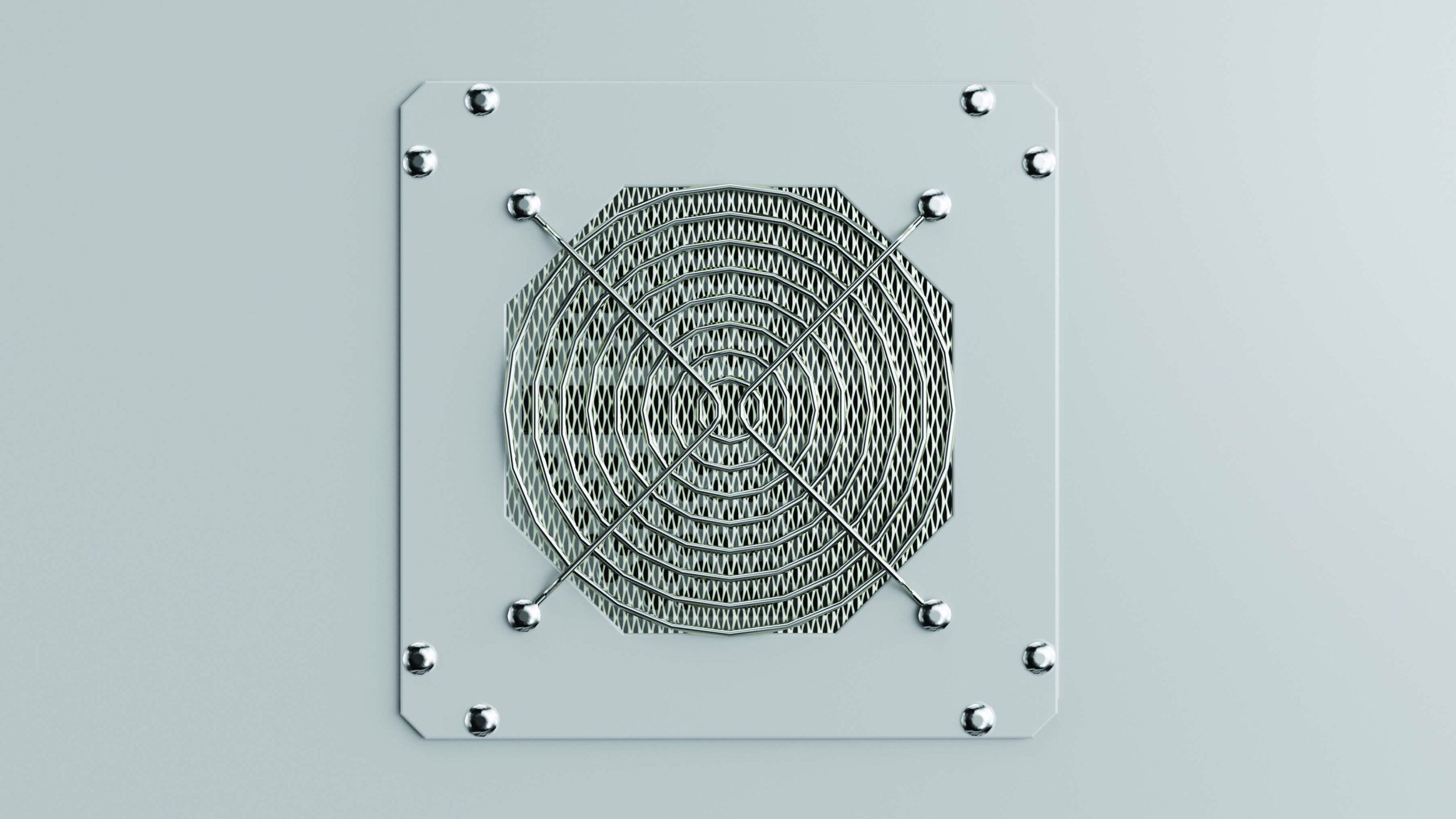

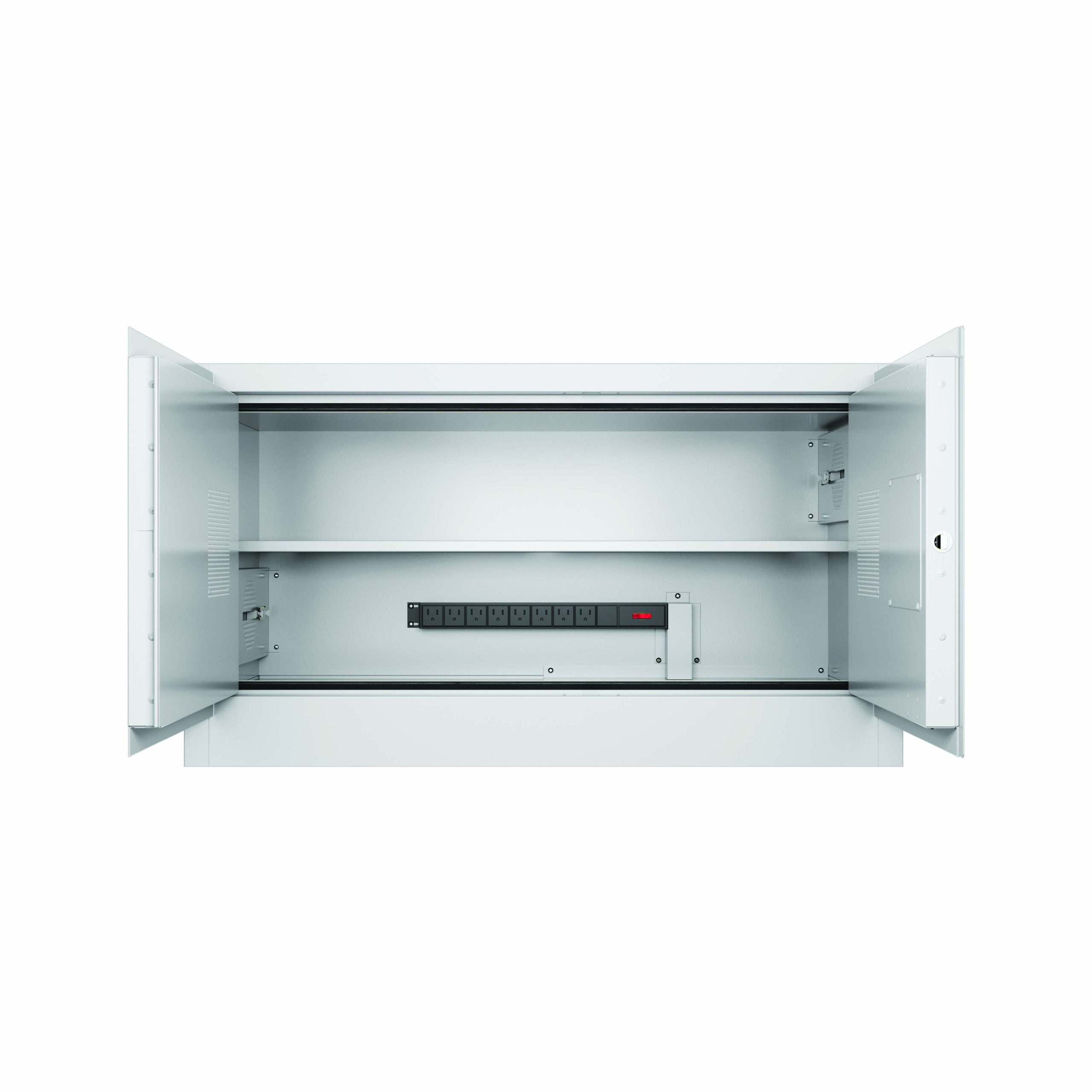

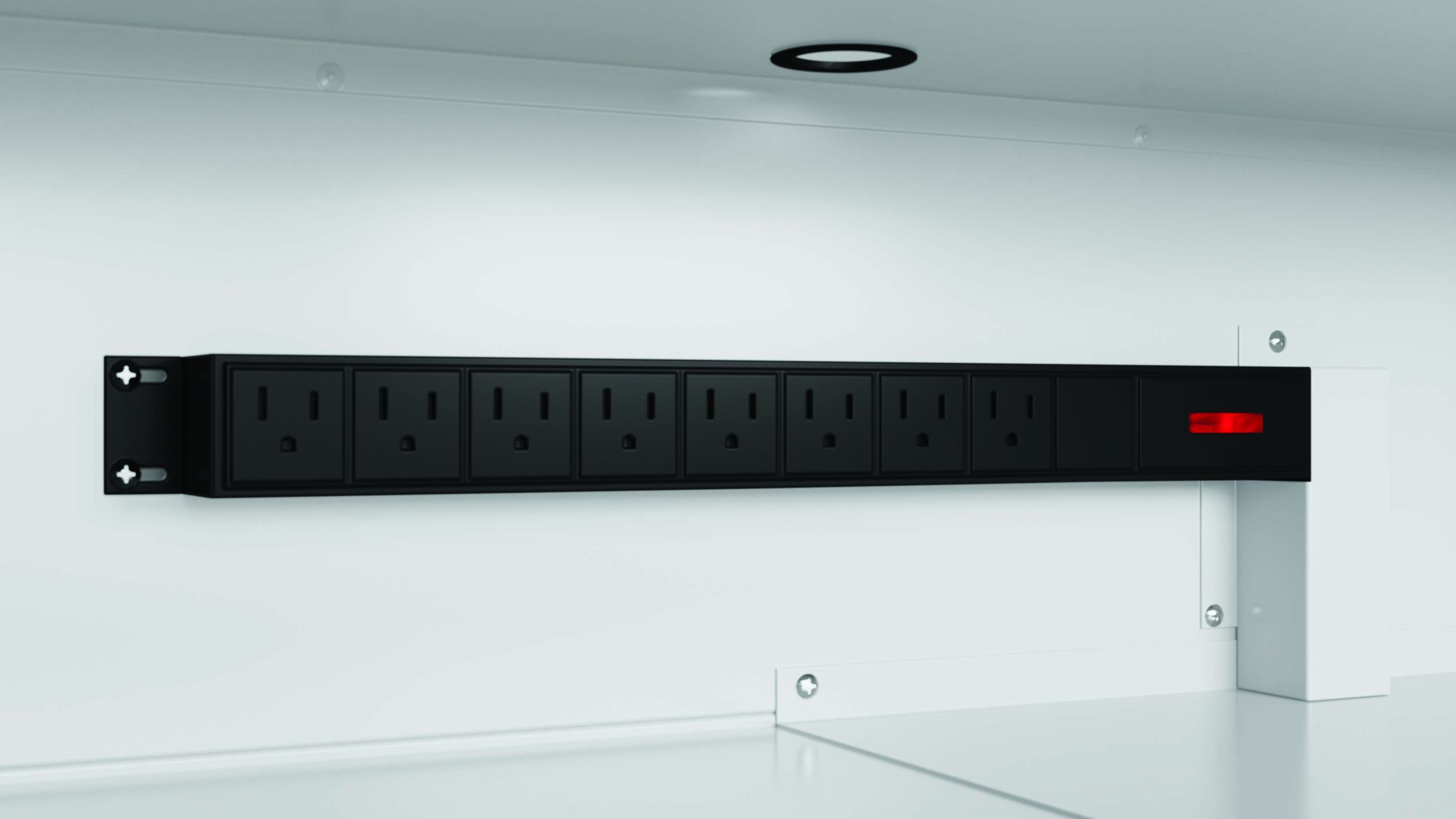

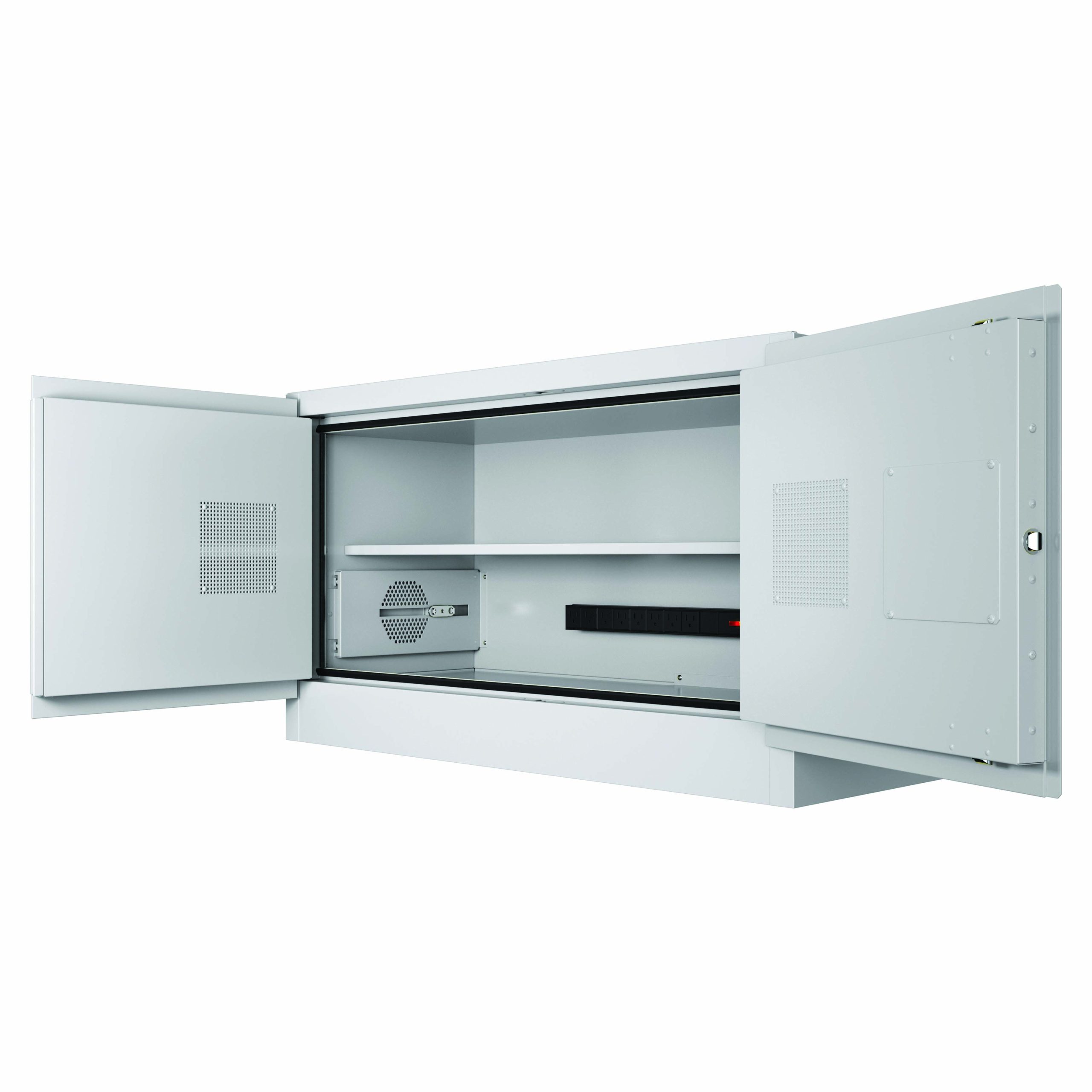

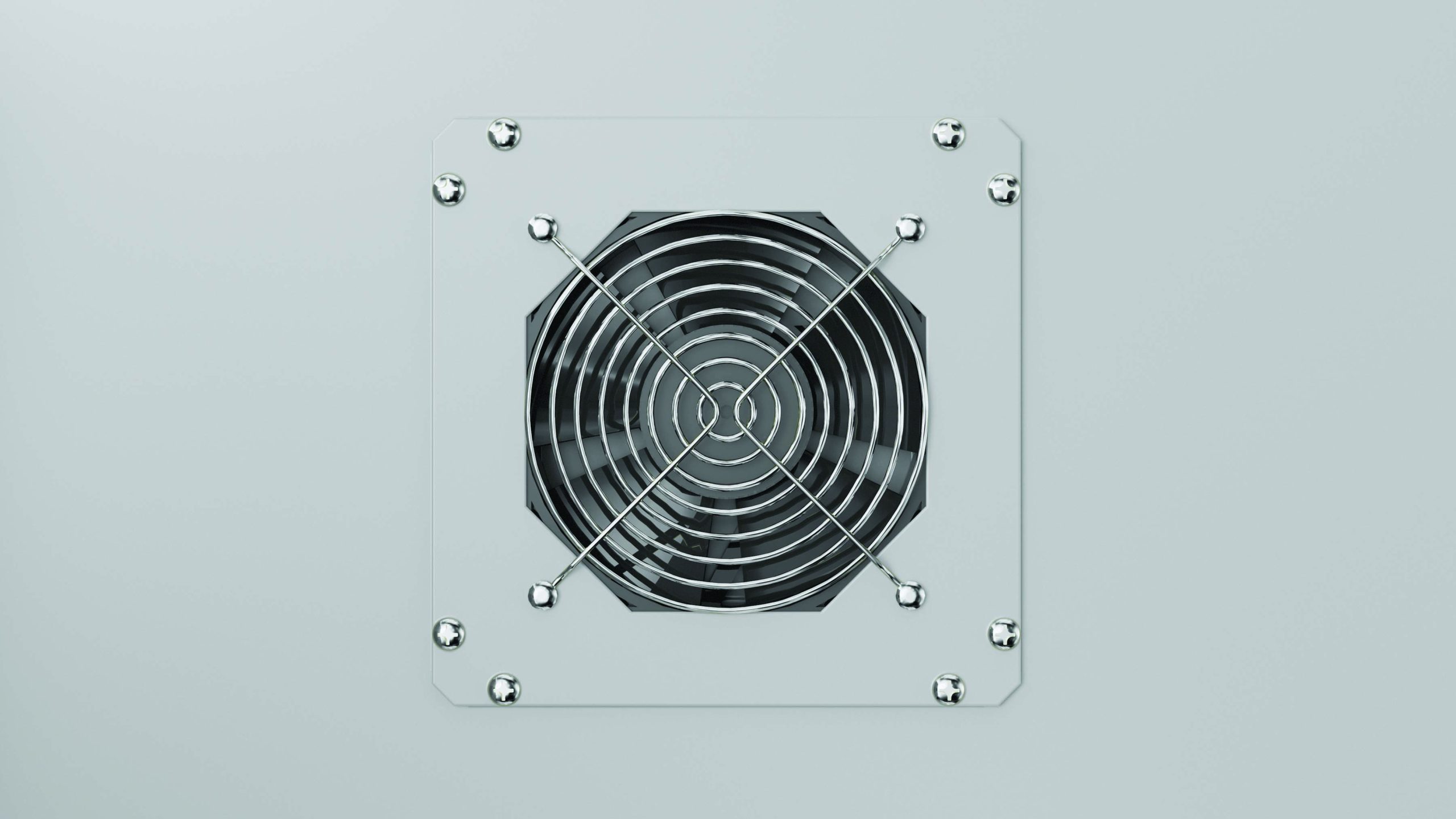

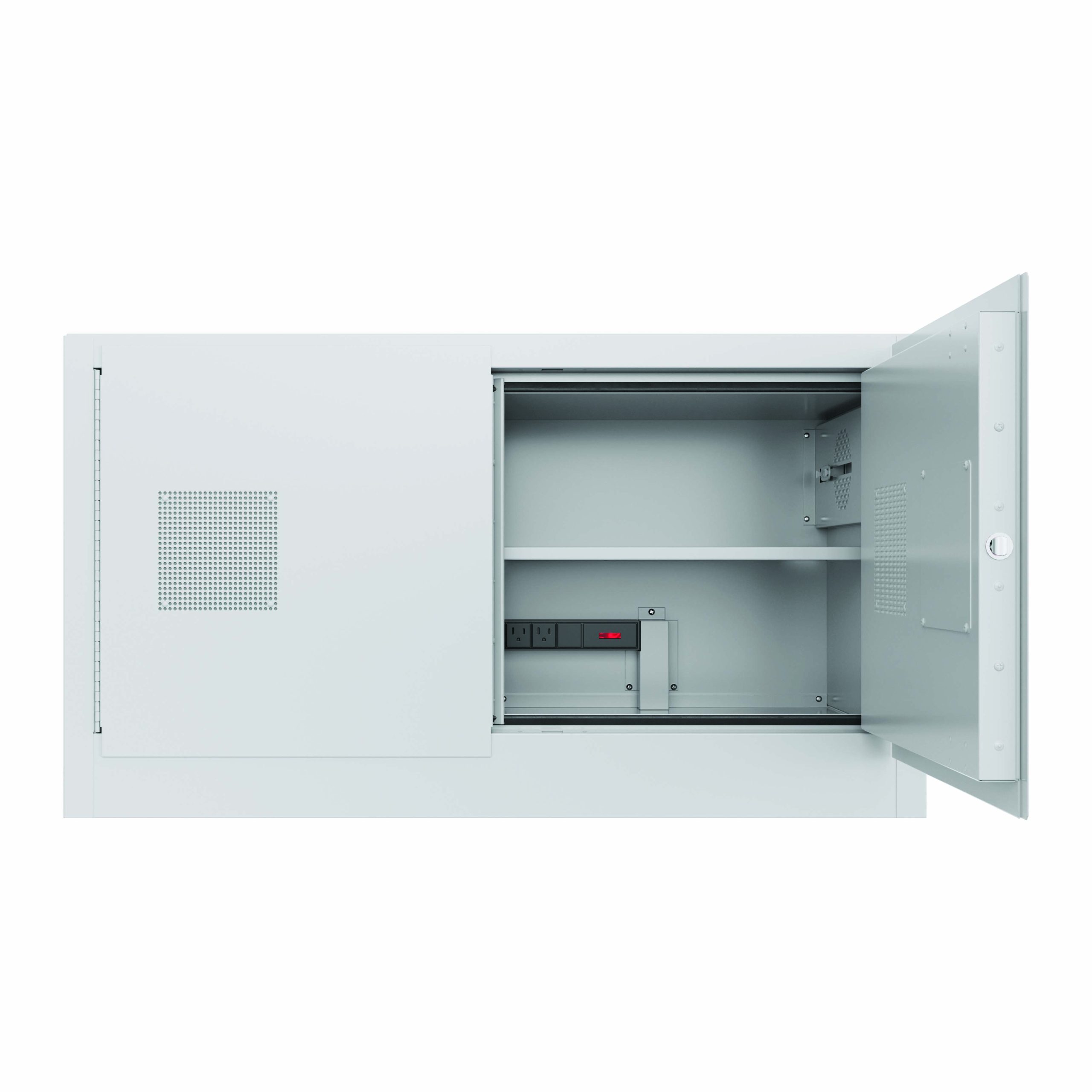

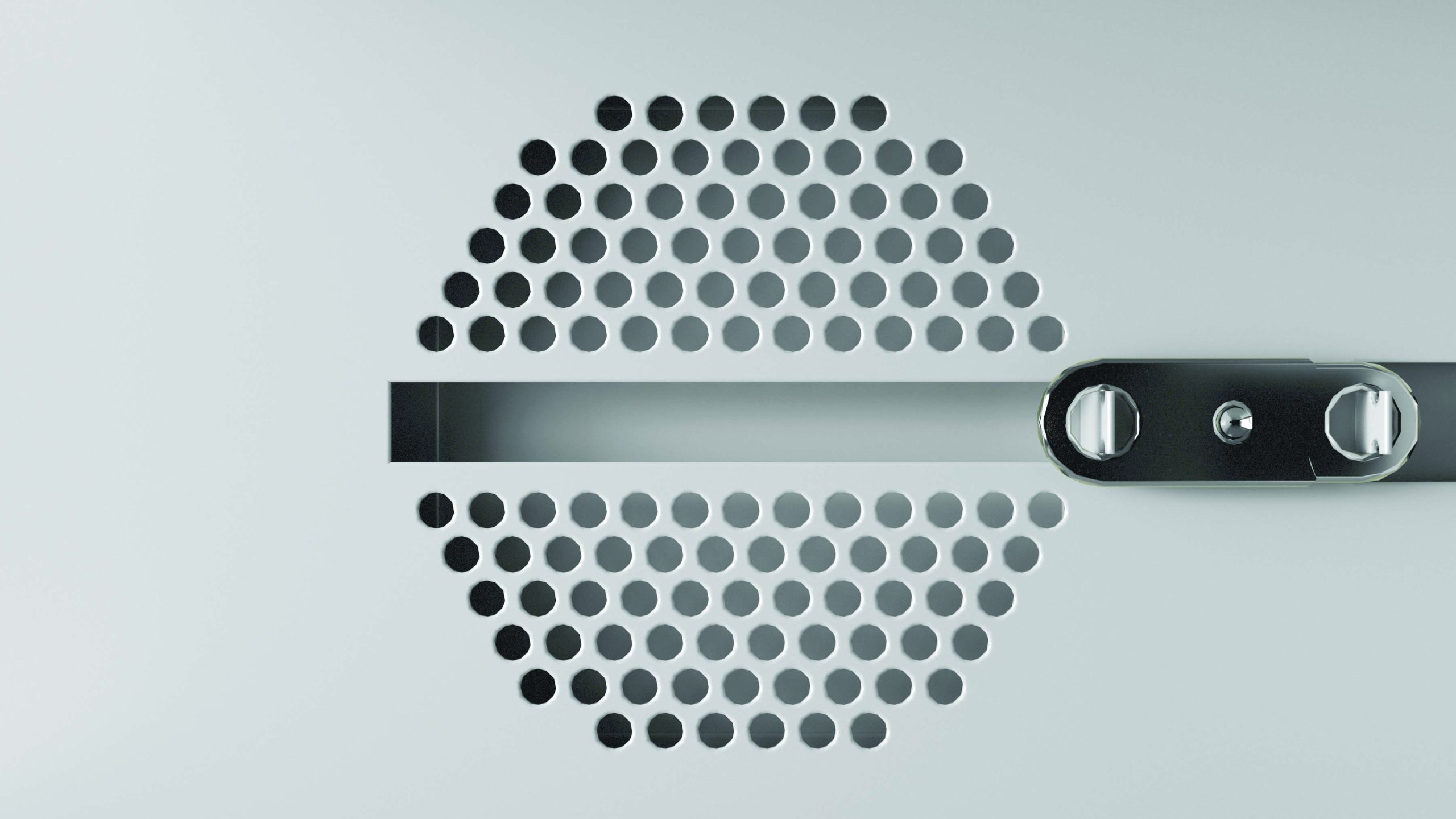

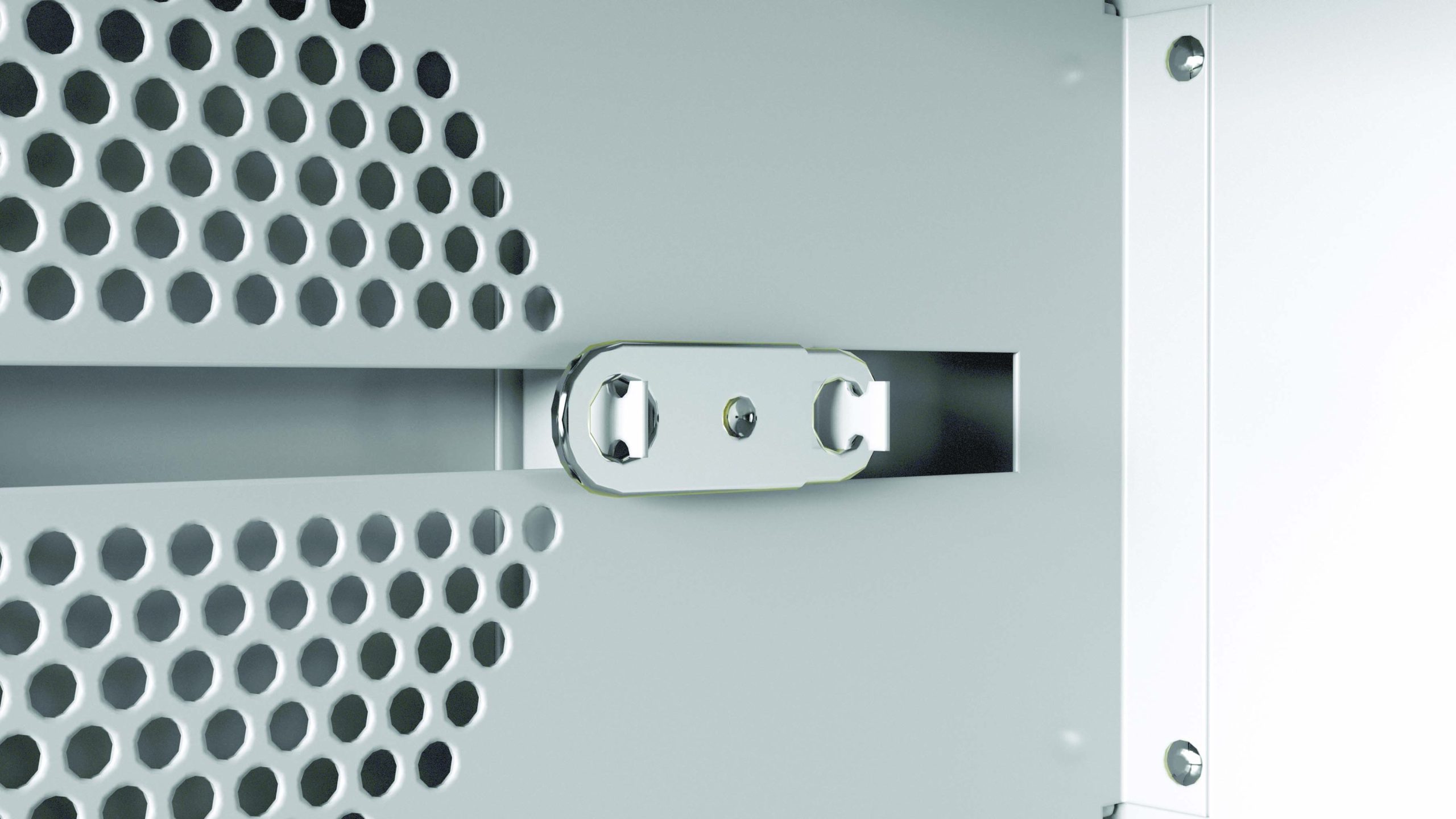

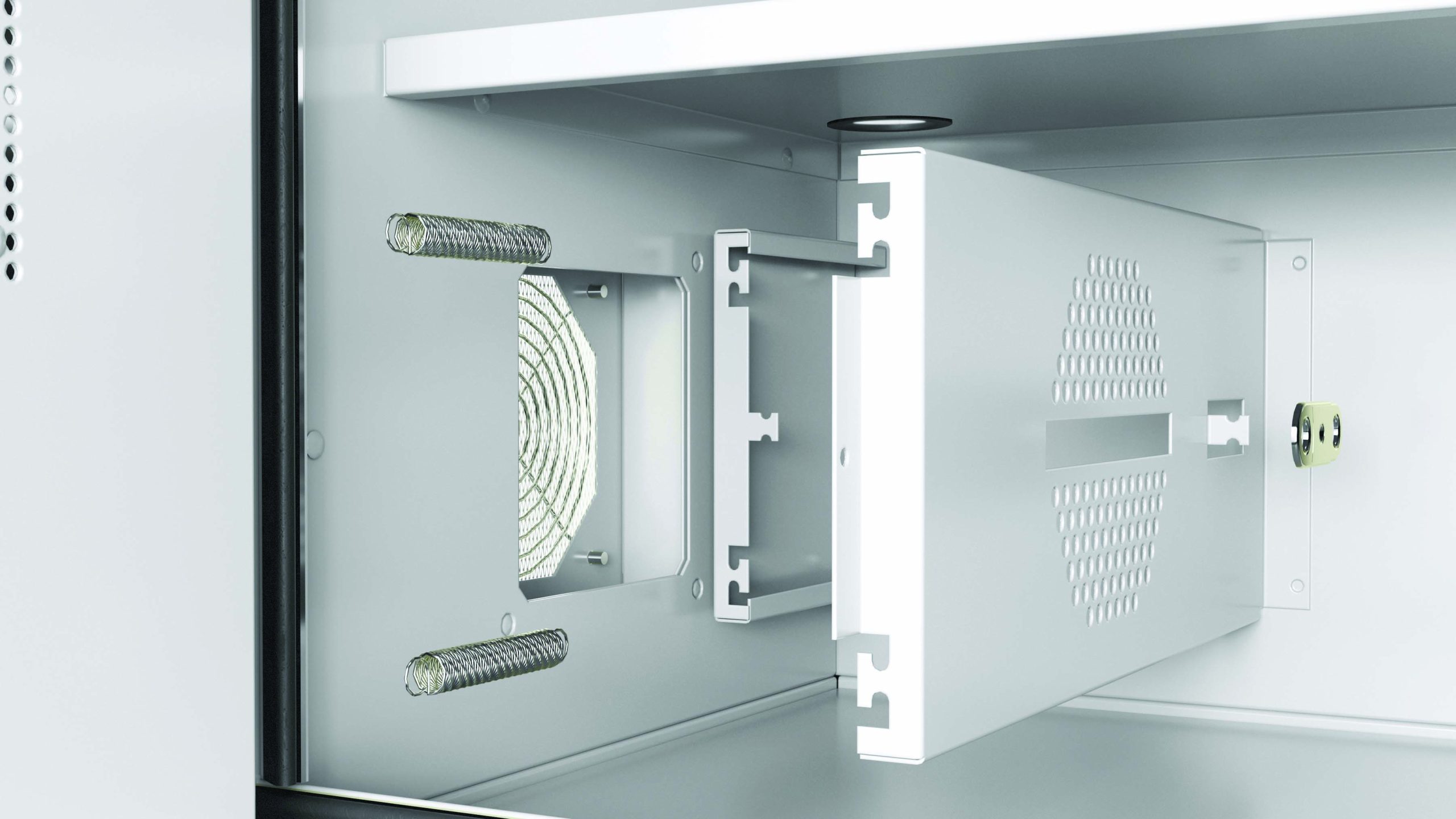

Inside the cabinet, you'll find a fixed shelf with a safe load capacity of 65 lbs. One Axial fan helps to regulate temperature and features sliding doors that close and obstruct the fan opening if the internal temperature exceeds 135° Fahrenheit. Additionally, the cabinet is equipped with an 8-receptacle power strip, providing you with a controlled space for charging your lithium-ion batteries.

Required Utilities: This product is intended to be plugged into a dedicated 120VAC/60Hz GFCI supply using a minimum14 gauge cord. (Supply cord not included with cabinet)

 Lithium-Ion Battery Charging Safety Cabinet

Lithium-Ion Battery Charging Safely cabinets managing the charging and storage of lithium-ion batteries in the workplace is crucial to prevent accidents and ensure the well-being of employees. The new Justrite lithium ion battery charging and storage cabinet provides the ideal storage solution.

Featuring ChargeGuard™ technology, this new cabinet was designed especially for minimizing the risks of battery fires and thermal runaway that arise when storing and charging lithium ion batteries in the workplace. With eight receptacles, it enables simultaneous charging of multiple batteries (up to a maximum of 2kWh), providing a reliable and efficient solution. The lightweight and compact benchtop design allows for easy relocation, and the lockable doors ensure controlled access to the batteries, preventing theft.

 Li Ion Battery Storage Risks

Improperly charging and storing lithium-ion batteries can pose several risks, including fire and explosion. The batteries contain a liquid electrolyte that is highly volatile and flammable. Exposure to high temperatures may cause them to catch fire or even explode. This risk is heightened when the batteries are not charged or stored correctly.

Thermal runaway is another potential risk. Lithium-ion batteries generate heat as a by-product of their power production. If a battery becomes too hot, it can lead to a thermal runaway situation in which the battery overheats and loses control, potentially resulting in a fire or explosion.

In extreme cases, improper charging and storage of lithium-ion batteries can cause a release of toxic gases, such as hydrogen fluoride and phosphorus oxyfluoride. These gases can be harmful to human health if inhaled.

To minimize these risks, it is important to follow safety guidelines when charging and storing lithium-ion batteries. This includes using the appropriate charger, avoiding overcharging or undercharging, storing batteries in a cool and dry place away from flammable materials, and disposing of damaged or old batteries properly.
